詳細信息：

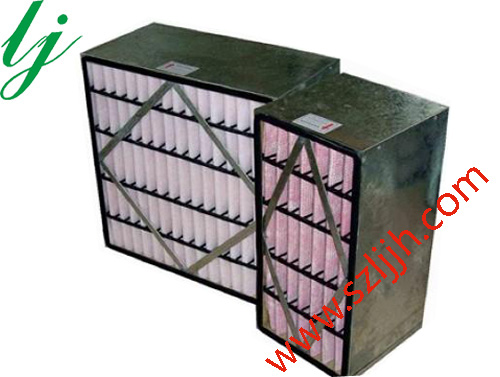

中效空氣過濾器
特點 ：Features
●使用壽命長
●阻力小、風量較大
●容塵量大
●廣泛運用于空調系統的中級過濾
●Long service life
●Small resistance, air is bigger
●Let the dust
●Widely used in air conditioning system
adopts the intermediate filtration
構成材料及運行條件
Materials and operating conditions
●框材：鋁合金或鍍鋅板外框
●External frane：Aluminum alloy steel or frame
●分隔物：塑膠插片
●Space: plastic inserted
●覆網：鋁網或鍍鋅網
●Reply: aluminum or galvanized mesh
●濾料材質：新型復合無紡布
●Filter material: new composite nonwoven fabric
●濾料顏色：F5(白色)45%（淺黃色）、F6(綠色)65%（桔紅色）、
F7(粉紅色)85%（紫色）、F8(淺黃色)95%（深黃色）
●Liao color: The F5 (white) 45% (yellow), F6 (green) 65% (orange),
F7 (pink) 85% (purple), F8 (yellow) 95% (deep yellow)
●密封條：醋酸乙酯
●Gasket：EVA
●密封物：聚胺脂膠
●Sealant：Gel-glue
●使用最高溫度、濕度：80℃、80%
●Use the highest temperature, humidity：80℃、80%
型號尺寸及其他參數
Standard specification
|
型號
model
|
外形尺寸
Outside Dimensions
(mm)
|
額定風量
Rated air flow
(m3/h)
|
初阻力
Initial resistance(Pa)
|
效率（級別）
Efficiency
(class)
|
濾料顏色
Liao color
|
折數
Fold number
|
|
LJ-ZXD-13
|
495×295×295mm
20″×12″×12″
|
1300m3/h
|
50Pa F5
55Pa F6
60Pa F7
65Pa F8
|
40-50% F5
60-70% F6
75-85% F7
85-95% F8
（比色法）
colorimetric
|
白色F5
White
綠色F6
Green
粉紅F7
pink
淺黃F8
yellow
|
8
|
|
LJ -ZXD-22
|
495×495×295mm
20″×20″×12″
|
2200m3/h
|
10
|
|
LJ -ZXD-16
|
595×295×295mm
24″×12″×12″
|
1600m3/h
|
14
|
|
LJ -ZXD-27
|
595×495×295mm
24″×20″×12″
|
2700m3/h
|
14
|
|
LJ -ZXD-32
|
595×595×295mm
24″×24″×12″
|
3200m3/h
|
18
|
*可要據用戶要求定制不同規格型號的鳥籠式中效過濾器
|
