詳細信息：

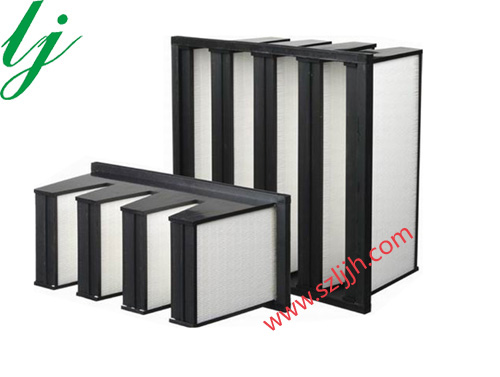

W型亞高效空氣過濾器
W type and efficient air filter
特點 Features
●使用壽命長
●大風量、阻力低、容塵量大
●適用于大風量空調通風系統的中級過濾
●Long service life
●Large volume, low resistance and large amount of dust
●For large volume air conditioning and ventilation
system of the intermediate filtration
構成材料及運行條件
Materials and operating conditions
●框材：塑膠外框 ●分隔物：熱熔膠
●External frane：Plastic box ●Space: glue
●密封物：聚胺脂膠 ●濾料：玻纖濾紙或聚酯纖維（PP）
●Sealant：Gel-glue ●Filter media：Glass fiber filter or polyester fiber (PP)
●使用最高溫度、濕度：80℃、80% ●Use the highest temperature, humidity：80℃、80%
型號尺寸及其他參數（Standard specification）
|
型號
model
|
外形尺寸
Outside dimensions
(mm)
|
額定風量
Rated air flow
(m3/h)
|
初阻力
Imitial resistance
(Pa)
|
效率（比色法）
Efficiency
(%)
|
濾料Filter materials
|
|
LJ-YGX2V-8J
|
287×287×292
|
800
|
≤125
|
95(F8)/99(F9)
|
聚酯纖維
Polyester fibers（PP）
玻璃纖維
Glass fiber
|
|
LJ-YGX3V-12J
|
490×287×292
|
1200
|
≤125
|
95(F8)/99(F9)
|
|
LJ-YGX3V-20J
|
490×490×292
|
2000
|
≤125
|
95(F8)/99(F9)
|
|
LJ-YGX3V-20J
|
592×490×292
|
2000
|
≤125
|
95(F8)/99(F9)
|
|
LJ-YGX4V-22J
|
592×490×292
|
2700
|
≤125
|
95(F8)/99(F9)
|
|
LJ-YGX4V-16J
|
592×287×292
|
1600
|
≤125
|
95(F8)/99(F9)
|
|
LJ-YGX3V-22J
|
592×592×292
|
2400
|
≤125
|
95(F8)/99(F9)
|
|
LJ-YGX4V-32J
|
592×592×292
|
3200
|
≤125
|
95(F8)/99(F9)
|
*可要據用戶要求定制不同規格型號的過濾器
According to user requirements to customize different specifications and types of filters
|
