詳細信息：

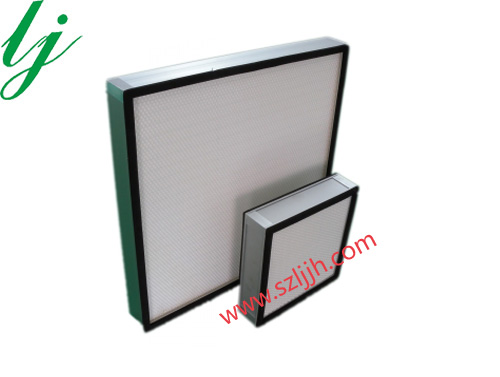

板式亞高效空氣過濾器
Plate and efficient air filter
特點 Features
●阻力低、容塵量較大
●適用于空調通風系統的高效末端保護
●Low resistance, dust capacity
●Applicable to air conditioning and ventilation
system of high end protection
構成材料及運行條件
Materials and operating conditions
●框材：鋁合金外框 ●分隔物：熱熔膠
●External frane：Aluminum alloy frame ●Space: glue
●密封物：聚胺脂膠 ●濾料：玻纖濾紙或聚酯纖維（PP）
●Sealant：Gel-glue ●Filter media：Glass fiber filter or polyester fiber (PP)
●使用最高溫度、濕度：80℃、80% ●Use the highest temperature, humidity：80℃、80%
型號尺寸及其他參數（Standard specification）
|
型號
model
|
外形尺寸
Outside dimensions
(mm)
|
額定風量
Rated air flow
(m3/h)
|
初阻力
Imitial resistance
(Pa)
|
效率（比色法）
Efficiency
(%)
|
濾料Filter materials
|
|
LJ-YGX-10/12J
|
610×610×69/80
|
1000/1200
|
≤125
|
95(F8)/99(F9)
|
聚酯纖維
Polyester fibers(PP)
玻璃纖維
Glass fiber
|
|
LJ-YGX-15/18J
|
915×610×69/80
|
1500/1800
|
≤125
|
95(F8)/99(F9)
|
|
LJ-YGX-20/25J
|
1220×610×69/80
|
2000/2500
|
≤125
|
95(F8)/99(F9)
|
*可要據用戶要求定制不同規格型號的過濾器
According to user requirements to customize different specifications and types of filters
|
